System Kodak Hybrid Off-Grid 48V 5kW Inverter 4.94kW 1.5C Lithium
Product Details
Kodak OG5.48 5.0kW Hybrid Off-Grid Axpert VMIII 4.94kW Lithium Battery Storage
Description:
The Kodak OG5.48 5000 48V Hybrid Off-Grid Inverter is a multi-functional inverter and charger, combining the functions of an inverter, solar charger and a battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications.
This unit comes with a built-in MPPT allowing for Solar capabilities and can power all kinds of appliances on the home or office environment, including motor-type appliances such as tube lights, fans, refrigerators and air-conditioners.
3 (three) year warranty
- Removable LCD control module with multiple communications servers and ATM
- Built-in Bluetooth for mobile monitoring (Android App is available)
- Replaceable fan design for ease of maintenance Supply load from Grid or PV, even battery is not available
- Configurable AC/PV output usage timer and prioritization Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Compatible to Utility Mains or generator input Auto restart while AC is recovering Cold start function
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterrupted power supply in a portable size. It’s comprehensive LCD display
offers user-configurable and easy accessible button operation such as
battery charging current, AC/solar priority, and acceptable input
voltage based on different applications.
INVERTER SPECIFICATIONS
Rated Power: 5000W
Voltage: 230 VAC
Surge Power: 10000 VA
Battery Voltage:48 VDC
Solar array: 5000W
Transfer time: 20 ms (typical)
Dimensions (mm): (d) 88 x (w) 257.6 x (h) 450
Weight: 12.0 kg
- Warranty: Standard 3 year warranty
Please note that this unit has a continuous fan and should not be placed in low noise areas such as bedrooms and living rooms
- INVERTER FEATURES AND BENEFITS
- Pure sine wave solar inverter
- Configurable input voltage range for home appliances and personal computers via LC setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC / solar charger priority via LCD setting
- Compatible to mains voltage to generate power
- Auto restart while AC is recovering
- Overload, over temperature and short circuit protection
- Smart battery charger design for optimized performance
- Cold start function
- Lithium Battery FEATURES AND BENEFITS
The BL4.9 Kodak battery is a high performance, 4.94kWh, scalable battery module perfect for expanding systems. A Single BL4.9 battery module allows up to 7500W of continuous discharge power. This means only one BL4.9 battery module is required for a 7kW+ inverter.
The battery has up to 6000+ cycles depending on the DoD of the battery.*
- 1.5 C industry leading C- rating allows single battery deployments for 5kW inverter systems
- 4.94 kWhrs capable of 15 units in parallel totaling 71.1 kWhrs
- RS485 and CAN communication ensures full compatibility with KODAK and Sunsynk
- Industry leading 95% DOD allowing for more useable capacity from the battery
- 10 year standard warranty
Due to the high discharge power of the BL3.6 Kodak battery, it is
highly recommended to use bus bars for the battery connections.
Power Rating:
Recommended Base Load: 1Hour Discharge Rate
| Recommended Base Load | Usage |
No. of 100Ahr Lithium Batteries | Runtime hours |
| 300W | 4900Whr | 1 x (95% DOD 3500Whr) |
16 |
| 600W | 4900Whr | 1 x (95% DOD 3500Whr) | 8 |
| 1000W | 4900Whr | 1 x (95% DOD 3500Whr) | 5 |
| 800W | 9800Whr | 2 x (95% DOD 7000Whr) | 12 |
| 1200W |
9800Whr |
2 x (95% DOD 7000Whr) | 8 |
Its max DC input voltage for 500V makes it ideal for 10 X 72 cell modules (320W - 540W) or 12 X 60 cell modules (260W - 400W).

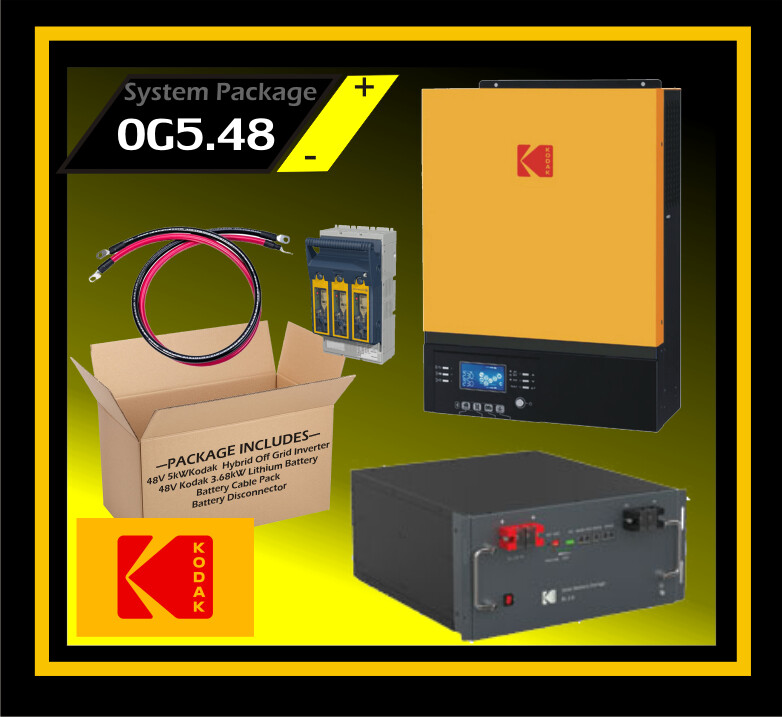

The OG5.48 package includes:
- 1 x Kodak OG5.48Off-Grid Solar Inverter 5.0kW 48V
- 1 x Kodak 48V 3.68kW Lithium Battery (4940W)
- 1 x Battery Cable Pack
- 1 x Battery Disconnect with 2 x 160A Blade fuses
Kodak OG5.48 System Performance:
The Kodak OG5.48 Inverter have a rated power output of 5000W and have a maximum solar panel array power of 5000W
1 x Kodak 4.94kW Lithium battery you will have 4.94Whr usable energy if you discharge the battery to 95% depth of discharge (DOD) every day.
- Weight: 50 kg
-
-
Battery Type: Lithium Ion
-
- Nominal Energy: 4940 Wh
-
- Depth of discharge: 95.00 %
-
- Voltage: 48 V
-
- Continuous Discharge Rate (Normal Use): 7500W
-
- Maximum Discharge Rate (5 Minutes): 7600 W
-
- Surge Discharge Rate (15 Seconds): 8000 W
-
- Maximum Charge Rate (5 Minutes): 4940 W
-
-
