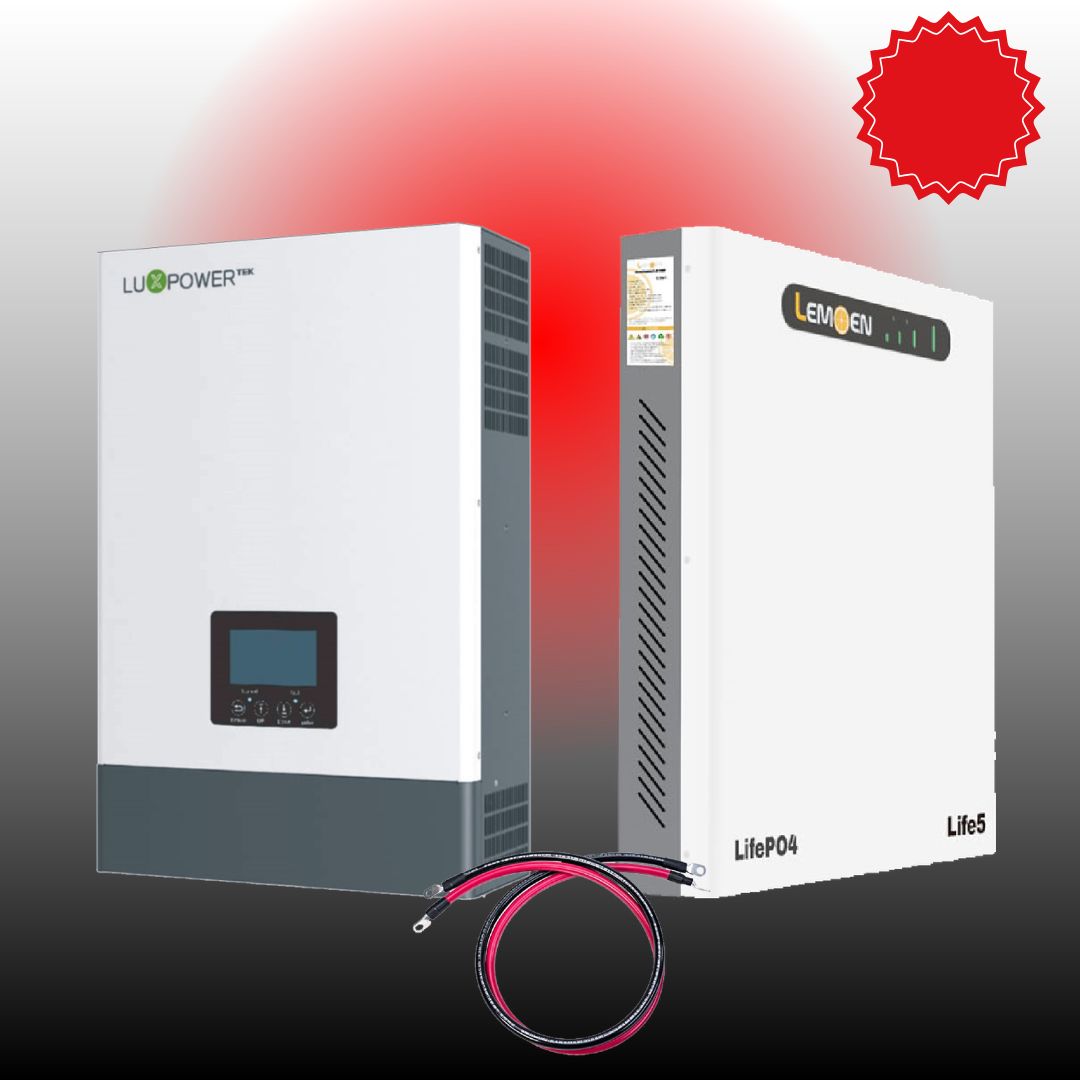

System Luxpower Hybrid Off-Grid 48V 6kW Inverter 5.12kW LEMOEN Life-5 Lithium
Product Details
Luxpower SNA6000 6.0kW Hybrid Off-Grid 5.12kW Lithium Battery Storage
Description:
The Luxpower SNA6000 48V Hybrid Off-Grid Inverter is a multi-functional inverter and charger, combining the functions of an inverter, solar charger and a battery charger to offer uninterruptible power support in a portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority and acceptable input voltage based on different applications.
This unit comes with a dual built-in MPPT allowing for Solar capabilities and can power all kinds of appliances on the home or office environment, including motor-type appliances such as tube lights, fans, refrigerators and air-conditioners.
2 (two) year warranty
This Off-Grid Inverter allows for an adequate solar array to power a small to moderate essential load .
It has 2 MPPTs which allows you to have 2 separate arrays. This means that if your roof is either east or west facing, you’ll be able to install your 2 arrays on each side of your roof , enabling you to produce solar power throughout the day.
You can expand your system by adding up to 9 inverters and you can monitor your daily usage remotely with an app.
Top Features
This is one of the most feature rich Off-Grid inverters on the market, with 2 MPPT's and the ability to blend AC and PV it is one of the best Off-Grid options.
Ideal for some looking for an inverter that is cheaper than a Hybrid inverter with some of the Hybrid features, one of, if not the first Off-Grid inverters to blend AC with PV power .
The 2 MPPT's allow you to build 2 separate array's, this is useful if you want to scale up, start with 1 array and later add the other. This is considers the changes in solar panel sizes that change every year.
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterrupted power supply in a portable size. It’s comprehensive LCD display
offers user-configurable and easy accessible button operation such as
battery charging current, AC/solar priority, and acceptable input
voltage based on different applications.
INVERTER SPECIFICATIONS
Rated Power: 6000W
Voltage: 230 VAC
Surge Power: 12000 VA
Battery Voltage:48 VDC
Solar array: 8000W
Transfer time: 20 ms (typical)
Dimensions (mm): (d) 88 x (w) 257.6 x (h) 450
Weight: 12.0 kg
- Warranty: Standard 2 year warranty (3 Year Warranty with HinaESS Lithium Pairing)
- INVERTER FEATURES AND BENEFITS
- Pure sine wave solar inverter
- Configurable input voltage range for home appliances and personal computers via LC setting
- Configurable battery charging current based on applications via LCD setting
- Configurable AC / solar charger priority via LCD setting
- Compatible to mains voltage to generate power
- Auto restart while AC is recovering
- Overload, over temperature and short circuit protection
- Smart battery charger design for optimized performance
- Cold start function
Completely Autonomous
Autonomous Off-Grid Solar Inverter keep the lights on and your bills down with no effort.Compatibility
Compatible with most AGM and Lithium-ion batteries on the market.Parallel Connection
If your needs grow so can your inverter, you can connect up to 9 Off-Grid inverters to expand.BMS Port
Connect your Lithium-ion battery directly with this new BMS Port , no need for middleware to communicate with your battery.Battery
Don’t worry about your battery running dry, the inverter will still use solar or grid .Connectivity
Monitor your usage using the WiFi/GPRS and the Android or IOS App .- Lithium Battery FEATURES AND BENEFITS
The Lemoen Life-5 Lithium battery is a high performance, 5.12kWh, scalable battery module perfect for expanding systems. A Single battery module allows up to 5120W of continuous discharge power.
- 1 C- rating allows single battery deployments for 5.12kW load (Battery Module Charge / Discharge Current: 50A (Recommended) (0.5C))
- 5.12kWhrs capable of 32 units in parallel totaling 163kWhrs
- RS485 and CAN communication ensures full compatibility with , Luxpower Voltronic, Deye, Victron, Sunsynk and more inverter manufacturers.
- 6000 Cycles 80% DOD allowing for more useable capacity from the battery
- 10 year manufacturer warranty
Power Rating:
Recommended Base Load: 5Hour Discharge Rate
| Recommended Base Load | Usage |
No. of 100Ahr Lithium Batteries | Runtime hours |
| 300W | 4100Whr | 1 x (80% DOD 4100Whr) |
13 |
| 600W | 4100Whr | 1 x (80% DOD 4100Whr) | 6.5 |
| 1000W | 4100Whr | 1 x (80% DOD 4100Whr) | 4 |
| 800W | 8200Whr | 2 x (80% DOD 8200Whr) | 10 |
| 600W |
8200Whr |
2 x (80% DOD 8200Whr) | 13 |
Its max DC input voltage for 500V makes it ideal for 10 X 72 cell modules (320W - 540W) or 12 X 60 cell modules (260W - 400W).

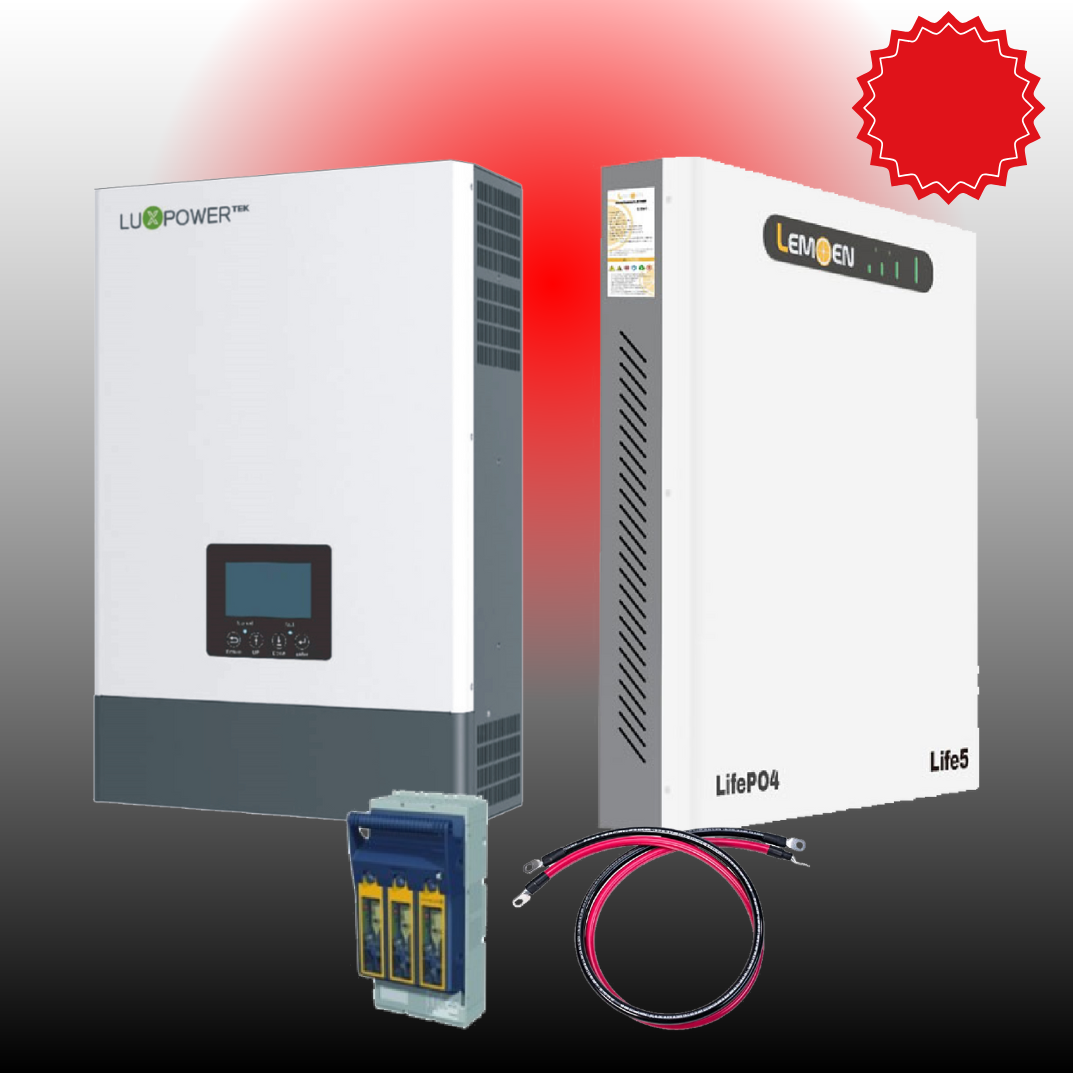

The LUX6.0 package includes:
- 1 x Luxpower SNA6000.48Off-Grid Solar Inverter 5.0kW 48V
- 1 x Lemoen Life-5 48V 5.12kW Lithium Battery (5120W)
- 1 x Lemoen Life-5 Battery Cable Pack
- 1 x Battery Disconnect with 2 x 160A Blade fuses
Luxpower LUX6.0 System Performance:
The Luxpower SNA6000 Inverter have a rated power output of 6000W and have a maximum solar panel array power of 8000W
1 xLemoen Life-5 5.12kW Lithium battery you will have 4100Whr usable energy if you discharge the battery to 80% depth of discharge (DOD) every day.
- Weight: 50 kg
-
-
Battery Type: Lithium Ion
-
- Nominal Energy: 5120 Wh
-
- Depth of discharge: 80.00 %
-
- Voltage: 48 V
-
- Continuous Discharge Rate (Normal Use): 5120 W
-
- Maximum Discharge Rate (5 Minutes): 5120 W
-
- Surge Discharge Rate (15 Seconds): 5120 W
-
- Maximum Charge Rate (5 Minutes): 5120 W
-
-
