Mecer 1kW Hybrid Off-Grid Solar inverter IVR1200MPPT

Description:

This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterrupted power supply in a portable size. It’s comprehensive LCD display

offers user-configurable and easy accessible button operation such as

battery charging current, AC/solar priority, and acceptable input

voltage based on different applications.

Best suited to smaller domestic systems where no parallel operation is needed.

Operates at 12V, so an ideal match with the 100Ahr or 200Ahr Lead Acid Batteries or 12V Lithium Batteries

• Simulated Sine Wave solar inverter
• Output power factor 0.8
• Selectable high power charging current
• Built-in 55A MPPT solar charger with wide DC input range
• Selectable input voltage range for home appliances and personal computers
• Configurable AC/solar input priority via LCD setting
• Compatible to AC mains or generator power
• Auto restart while AC is recovering
• Overload and short circuit protection
• Smart battery charger design for optimised battery performance
• Cold start function
• Optional anti-dust kit
• Free power cable included

1 x 100Ahr GEL battery delivers up to 500W of continuous discharge power, based on Max Discharge of 500W per 100Ahr GEL Battery.

With two 100Ahr GEL batteries each, delivers up to 1kW of continuous discharge power, based on Max Discharge of 1.0kW per 100Ahr Battery

That's perfect for supplying some of the higher powered electrical loads in the evening, or running essential loads during a grid failure.

So for example, a 200Ah 12V lead acid battery bank comprising 2 x 100Ah batteries and giving an effective 1.0kWh of storage at 50% DOD could realistically be replaced with 1 x 12V 100Ahr lithium battery which provide 1.1kWh storage at 90% DOD.In many cases the original lead-acid battery bank being replaced may have been too small to fully meet the client’s requirements and therefore consideration should be given to replacing it with a Lithium-Ion battery bank with a larger capacity.

Power Rating:

When used with solar inverters, 1 x 100Ahr Lead Acid battery will deliver 500Wh usable energy when discharged at 50% Depth of Discharge (DOD).Therefore, to take into account the expected current draw of the inverter, Solar Corporation recommends that the minimum number Lead Acid or Lithium batteries be linked to the site-specific base load as follows:

Recommended Base Load: 10Hour Discharge Rate

Recommended Base Load	Capacity	No. of 100Ahr GEL Lead Acid Batteries
100W	1000Whr	2
150W	1500Whr	3
200W	2000Whr	4
300W	3000Whr	6

MECER IVR1200 1200VA/1000W off grid 660W MPPT 12V

Equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for the charging the battery bank.Transformer-less design provides reliable power conversion in compact size and with high efficiency. With aluminum housing, Integrated interface system, It’s light and handy, making installation easier. It’s the ideal inverters for small PV plants, or individually for small houses, both indoors and outdoors.

Mecer 1200VA / 1000W 12V Inverter With MPPT Solar Charger, Lithium And Lead Acid Battery Controller - IVR-1200MPPT

External Batteries Required

Features

• Simulated sine wave inverter
• Wide input voltage range
• Overload and short circuit protection
• LCD display for comprehensive information
• MPPT

Specifications:

• Model: IVR-1200MPPT
• Capacity: 1200VA / 1000W
• Power Factor: 0.83

Input:

• Voltage 220-240 VAC
• Voltage Range 90-280 VAC
• Nominal Operating Frequency 50/60Hz
• Maximum Input Current 10A

Output:

• Nominal Output Voltage 220-240 VAC
• Voltage Regulation (Batt. Mode) +/-10%
• Output Frequency Range 50/60Hz
• Nominal Output Current 5.2A
• Inrush Current 10A
• Maximum Output Fault Current 6.9A
• Transfer Time 20 ms typical
• Waveform Simulated Sine Wave

Battery:

• Battery Voltage 12 VDC
• Maximum Battery Discharging Current 100A
• Floating Charge Voltage 13.7 VDC +-0.5 VDC

CV Charging Voltage

• Lead Acid Battery 14.3 VDC +-0.5 VDC
• Lithium Battery 14.6 VDC +-0.5 VDC
• Cut Off Voltage 10.5 VDC +-0.5 VDC
• Maximum AC Charging Current 10 A or 25 A

Solar Charger:

• Solar Charger Type MPPT
• Maximum PV Array Open Circuit Voltage 100 VDC
• MPP Range @ Operating Voltage 15 ~ 80 VDC
• Max. PV array Input Power 825W
• Max. PV array Power to support 660W
• Maximum Solar Charging Current 55 A
• Maximum Charging Current (Utility +SCC) 55 A

Please note that this unit has a continuous fan and should not be placed in low noise areas such as bedrooms and living rooms

Its max DC input voltage for 100V makes it ideal for 2 X 72 cell modules (320W - 540W) or 3 X 60 cell modules (260W - 400W).

With 1 x 330W Solar Panel the system will produce an average of 1650W per sunshine day without any losses deducted. (Shade, dust, cable length etc.)

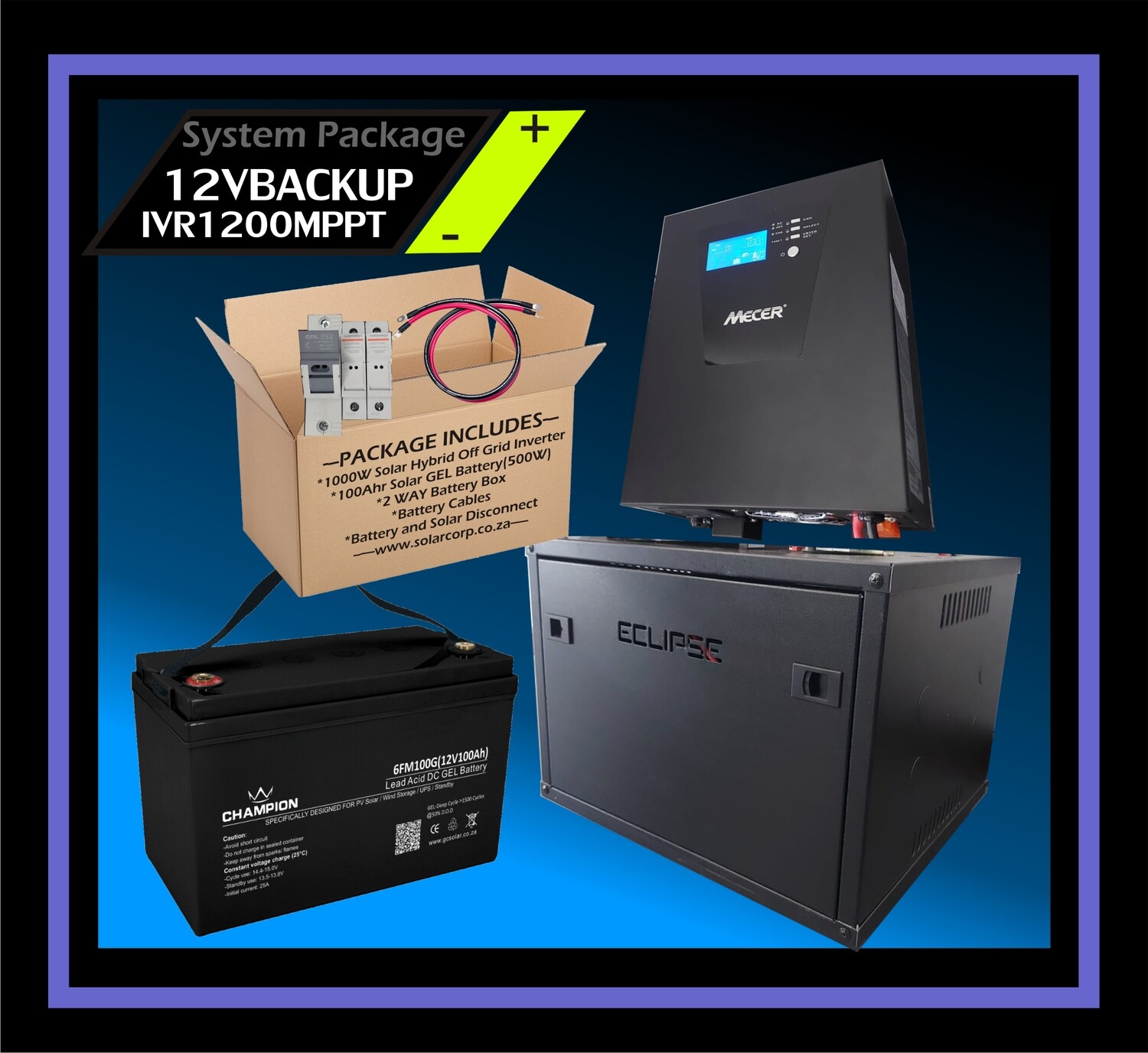

The 12VBACKUP package includes:

• 1 x Mecer IVR1200MPPT Off-Grid Solar Inverter 1kW 12V
• 1 x 12V 100Ahr Gel Solar Batteries (100Ahr storage) 500W usable power per day
• 30A 1000V double pole Fuse breakers for PV/DC isolation, 2 x 30A fuses.
• 63A DC fuse and 63A fuse holder battery ddisconnect.

• A Battery box to store 2 x 100Ahr batteries.

12VBACKUP System Performance:

• The Mecer IVR1200MPPT Inverter have a rated power output of 1200kVa (1000W) and have a maximum solar panel array power of 825W

• 1 x 100Ahr Gel batteries you will have 500Whr usable energy if you discharge the battery to 50% depth of discharge (DOD) every day.
• Built in 20A Battery Charger to recharge battery with Utility.
