This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterrupted power supply in a portable size. It’s comprehensive LCD display

offers user-configurable and easy accessible button operation such as

battery charging current, AC/solar priority, and acceptable input

voltage based on different applications.

INVERTER SPECIFICATIONS

Rated Power: 3000W

Voltage: 230 VAC

Surge Power: 6000 VA

Battery Voltage: 24 VDC

Solar array: 1200W

Transfer time: 20 ms (typical)

Dimensions (mm): (d) 88 x (w) 257.6 x (h) 320

Weight: 5.7 kg

• Warranty: Standard 2 year warranty

Please note that this unit has a continuous fan and should not be placed in low noise areas such as bedrooms and living rooms

• INVERTER FEATURES AND BENEFITS
  • Pure sine wave solar inverter
  • Configurable input voltage range for home appliances and personal computers via LC setting
  • Configurable battery charging current based on applications via LCD setting
  • Configurable AC / solar charger priority via LCD setting
  • Compatible to mains voltage to generate power
  • Auto restart while AC is recovering
  • Overload, over temperature and short circuit protection
  • Smart battery charger design for optimized performance
  • Cold start function
  Do not install unit where low noise levels are required such as bedrooms and living rooms.
• Lithium Battery FEATURES AND BENEFITS

Power Rating:

When used with Axpert inverters, 1 x 4800Whr Lithium battery will deliver 4320Wh usable energy when discharged at 90% Depth of Discharge (DOD). Therefore, to take into account the expected current draw of the inverter, Solar Corporation recommends that the minimum number Lithium batteries be linked to the site-specific base load as follows:

Recommended Base Load: 1Hour Discharge Rate

SOLAR CHARGER & AC CHARGER

- Maximum PV Array Power: 1200W

- PWM Range @ Operating Voltage: 30 VDC ~ 80 VDC

- Maximum PV Array Open Circuit Voltage: 80 VDC

- Maximum Solar Charge Current: 50 A

- Maximum AC Charge Current: 30 A

- Maximum Charge Current: 50 A

- Maximum Efficiency: 93%

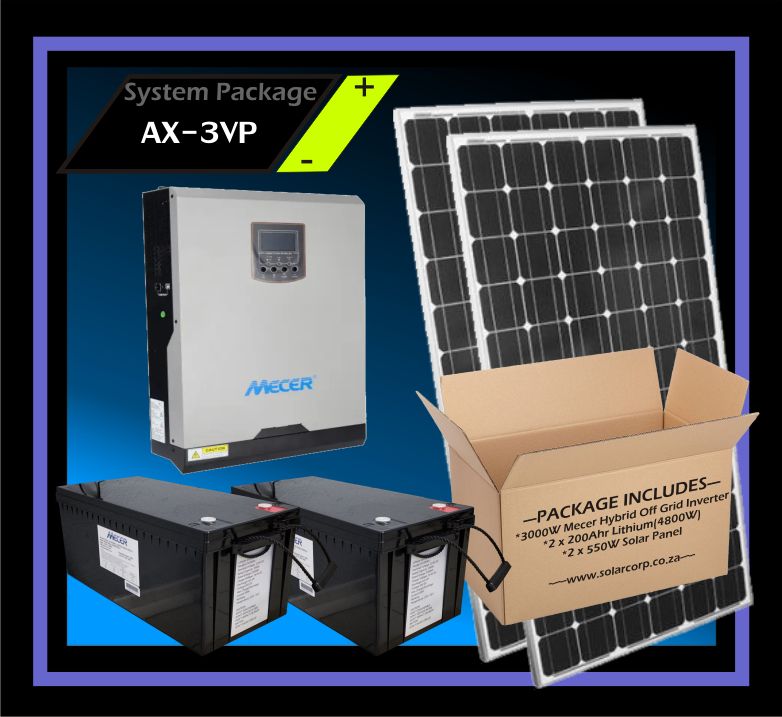

The AX-3VP package includes:

• 1 x Mecer Ax-3VP Off-Grid Solar Inverter 3.0kW 24V
• 1 x Mecer 24V 4.8kW Lithium Battery (4800W)
• 2 x 550W Solar Panels

Mecer AX-3VP System Performance:

The Mecer AX-3VP Inverter have a rated power output of 3000W and have a maximum solar panel array power of 1200W

2 x 550W Solar Panels (Maximum Power Output 1100W without losses) 5500W or 5.2kW Solar Production per day

2 x 12V 2.4kW (24V 4.8kW) Lithium batteries you will have 4320Whr usable energy if you discharge the battery to 90% depth of discharge (DOD) every day.

Nominal Energy: 4320 Wh

Depth of discharge: 90.00 %

Voltage: 24 V

Continuous Discharge Rate (Normal Use): 2400 W

Maximum Discharge Rate (5 Minutes): 2400 W

Surge Discharge Rate (15 Seconds): 2400 W

Maximum Charge Rate (5 Minutes): 2400 W
