This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterrupted power supply in a portable size. It’s comprehensive LCD display

offers user-configurable and easy accessible button operation such as

battery charging current, AC/solar priority, and acceptable input

voltage based on different applications.

INVERTER SPECIFICATIONS

Rated Power: 5000W

Voltage: 230 VAC

Surge Power: 10000 VA

Battery Voltage: 48 VDC

Solar array: 2400W

Transfer time: 20 ms (typical)

Dimension, D x W x H (mm): 100 x 300 x 440

Weight: 8.5 kg

• Warranty: Standard 2 year warranty

Please note that this unit has a continuous fan and should not be placed in low noise areas such as bedrooms and living rooms

• INVERTER FEATURES AND BENEFITS
  • Pure sine wave solar inverter
  • Configurable input voltage range for home appliances and personal computers via LC setting
  • Configurable battery charging current based on applications via LCD setting
  • Configurable AC / solar charger priority via LCD setting
  • Compatible to mains voltage to generate power
  • Auto restart while AC is recovering
  • Overload, over temperature and short circuit protection
  • Smart battery charger design for optimized performance
  • Cold start function
  Do not install unit where low noise levels are required such as bedrooms and living rooms.
• Lithium Battery FEATURES AND BENEFITS

Power Rating:

When used with Axpert inverters, 1 x 5120Whr Lithium battery will deliver 5120Wh usable energy when discharged at 100% Depth of Discharge (DOD). Therefore, to take into account the expected current draw of the inverter, Solar Corporation recommends that the minimum number Lithium batteries be linked to the site-specific base load as follows:

Recommended Base Load: 1Hour Discharge Rate

SOLAR CHARGER & AC CHARGER

- Maximum PV Array Power: 2400W

- PWM Range @ Operating Voltage: 30 VDC ~ 80 VDC

- Maximum PV Array Open Circuit Voltage: 105 VDC

- Maximum Solar Charge Current: 50 A

- Maximum AC Charge Current: 60 A

- Maximum Charge Current: 110 A

- Maximum Efficiency: 93%

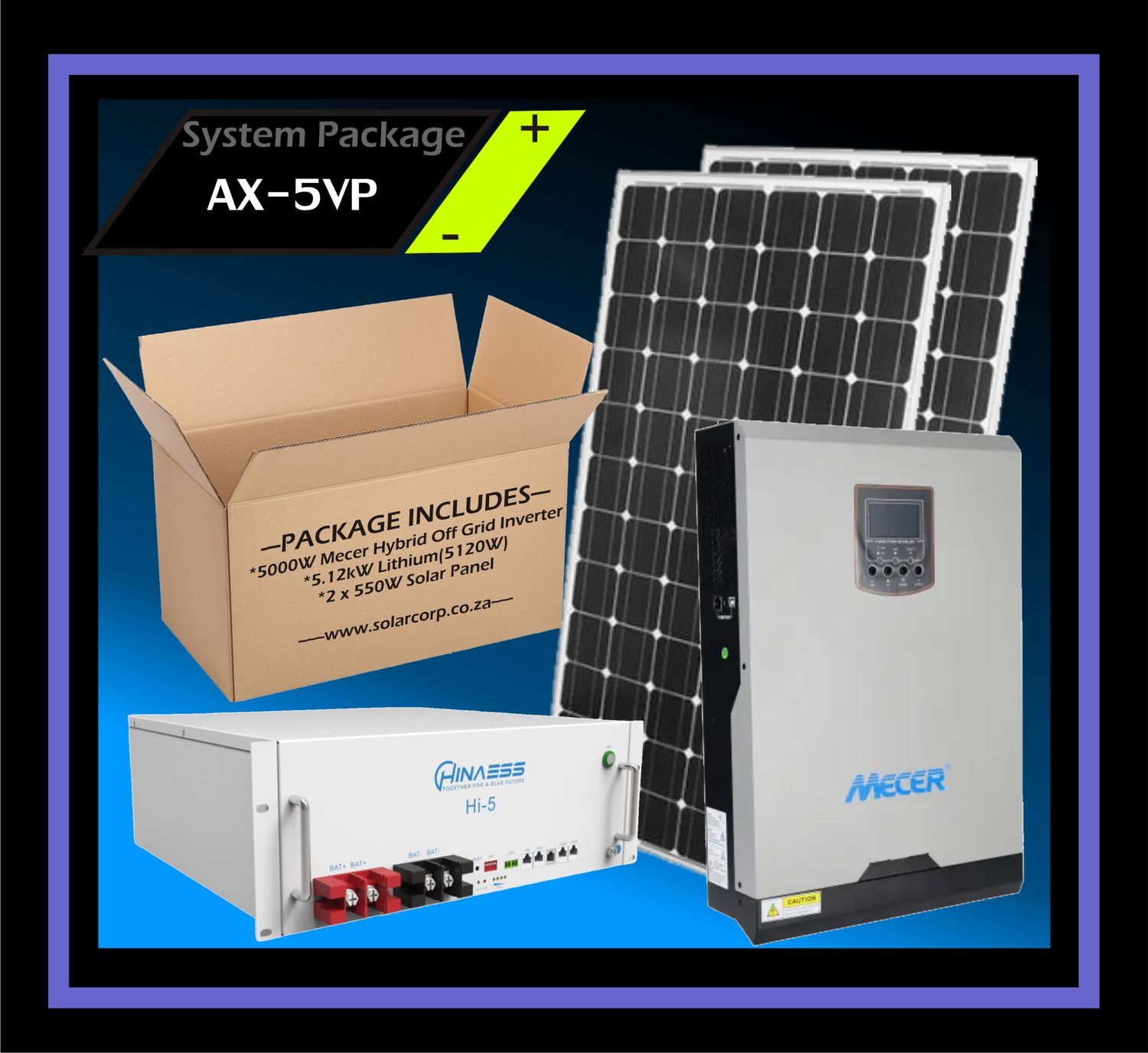

The AX-5VP package includes:

• 1 x Mecer Ax-5VP Off-Grid Solar Inverter 5.0kW 48V
• 1 x 5.12kW Lithium Battery (5120W)
• 2 x 550W Solar Panels

Mecer AX-3VP System Performance:

The Mecer AX-5VP Inverter have a rated power output of 5000W and have a maximum solar panel array power of 1200W

2 x 550W Solar Panels (Maximum Power Output 1100W without losses) 5500W or 5.2kW Solar Production per day

1 x 51V 5.12kW (51V 5120W) Lithium batteries you will have 5120Whr usable energy if you discharge the battery to 100% depth of discharge (DOD) every day.

Nominal Energy: 5120 Wh

Depth of discharge: 100.00 %

Voltage: 51 V

Continuous Discharge Rate (Normal Use): 5120 W

Maximum Discharge Rate (5 Minutes): 5120 W

Surge Discharge Rate (15 Seconds): 5120 W

Maximum Charge Rate (5 Minutes): 5120 W
