System Solis S6 Full Hybrid 48V 5kW Inverter 5.0kW Freedom Won eTower Lithium
R33 840.00ZAR
INSTALLERS COMBO
Price incl. VAT (15%) R4 413.91ZAR
Inverter Included
Lithium Battery Included
Battery Disconnector Included
Battery Cable Included
1
Save this product for later
System Solis S6 Full Hybrid 48V 5kW Inverter 5.0kW Freedom Won eTower Lithium
Product Details
Solis S6 Pro 5kW Advanced Hybrid Inverter
Product Features
- Max PV input of 8000W dual MPPT with PV string current of 16A at 600V.
- Supports 1ph and 3ph flexible parallel connections with 6 units max for 36kW back-up.
- Generator connectivity with automatic On/Off control.
- 111A charge and discharge current.
- 10 second, 200% surge power backup overload capability.
- 24 hour real-time intelligent energy management - Bluetooth/Wi-Fi/App.
- Uninterrupted power supply with 4ms reaction time.
- Comes with a Wi-Fi/LAN datalogger, CT and more.
- 5-year warranty - extendable to 10-years - Free extension when paired with Freedom Won batteries.
- SA: NRS 097 certified and CoCT approved.
Battery Input Data
- Battery Type: Lead-acid or Li-lon
- Battery Voltage Range (V): 40-60V
- Max. Charging Current (A): 112A
- Max. Discharging Current (A): 112A
- Charging curve: 3 Stages/Equalization
- External Temperature Sensor: Optional
- Charging Strategy for Lithium Battery: Self-adaption to BMS
- Max. DC Input Power (W): 8000W.
- PV input Voltage (Voc): 600V
- MPPT Range (V): 90-520V.
- Start-up Voltage (V): 90V.
- PV Input Current (A): 16A + 16A.
- No. of MPPT Trackers: 2
- No. of Strings Per MPPT Tracker: 1+1.
- Rated AC Output and UPS Power (W): 5000W
- Max AC Output Power (W): 5000W
- Peak Power(off-grid): 2 times of rated power, 10 S.
- Max. Efficiency: 97.60%
- Euro Efficiency: 96.20%
- MPPT Efficiency: 99.90%
- PV Arc Fault Detection: Integrated (Except European Type)
- PV Input Lightning Protection: Integrated
- Anti -islanding Protection: Integrated
- PV String Input Reverse Polarity Protection: Integrated
- Insulation Resistor Detection: Integrated
- Residual Current Monitoring Unit: Integrated
- Output over Current Protection: Integrated
- Output Shorted Protection: Integrated
- Output over Voltage Protection: Integrated
- Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
- Safety Regulation: IEC62109-1, IEC62109-2
- EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B
Freedom Won eTower LiFePO4 Battery 5kW 52V
The Freedom Won eTower 5kW , 52V battery
The Freedom Won eTower is an economical and modular Life PO4 Solution for residential and light commercial applications
- 5kWh battery with a 90% DoD
- Stackable up to 4 Units (20kWh Total)
- Wide range Inverter compatibility
- 10-Year Limited warranty
- Module interface pedestal included (no cabinet required)
- 5U module design
- 4000 charge and discharge cycles
- Stacked horizontally onto each other to form a tower with pedestals included, (one per module) or 19 inch rack mounted with brackets (cabinet excluded).
- Vertical mounting on floor or wall (shelf/bracket) with terminals facing upwards
- Comes complete with One e5000 plastic pedestal for tower stacking (cleats for 19” rack not included but available from Freedom Won if required).
- All Acccessories Included:
- 1 x 1.8m red 35mm battery cable with m6 lug
- 1 x 1.8m black 35mm battery cable with m6 lug
- 2 x busbar connectors (x1 heatshrink in black and x1 heatshrink in red)
- 1 x inter modular comms cable
- 1 x 1.8m long comms cable for Victron Inverters
- 1 x 1.8m long comms cable for Type 1 inverters
- 1 x 1.8m long RS485 comms cable this is for Voltronic inverters (Kodak) communication
The converter is not required for the eTower
- Weight: 47 kg
-
- Battery Type: Lithium Ion
-
- Nominal Energy: 5000 Wh
-
- Depth of discharge: 90.00 %
-
- Voltage: 52 V
-
-
Continuous Discharge Rate (Normal Use): 4700 W
-
- Maximum Discharge Rate (5 Minutes): 5200 W
-
- Surge Discharge Rate (15 Seconds): 5200 W
-
- Maximum Charge Rate (5 Minutes): 4200 W
-
Recommended Base Load: 5Hour Discharge Rate
| Recommended Base Load | Usage |
No. of 100Ahr Lithium Batteries | Runtime hours |
| 300W | 4700Whr | 1 x (90% DOD 4700Whr) |
15.5 |
| 600W | 4700Whr | 1 x (90% DOD 4700Whr) | 7.5 |
| 800W | 4700Whr | 1 x (90% DOD 4700Whr) | 5.5 |
| 600W | 9400Whr | 2 x (90% DOD 9400Whr) | 15.5 |
| 1000W |
9400Whr |
2 x (90% DOD 9400Whr) | 9.5 |

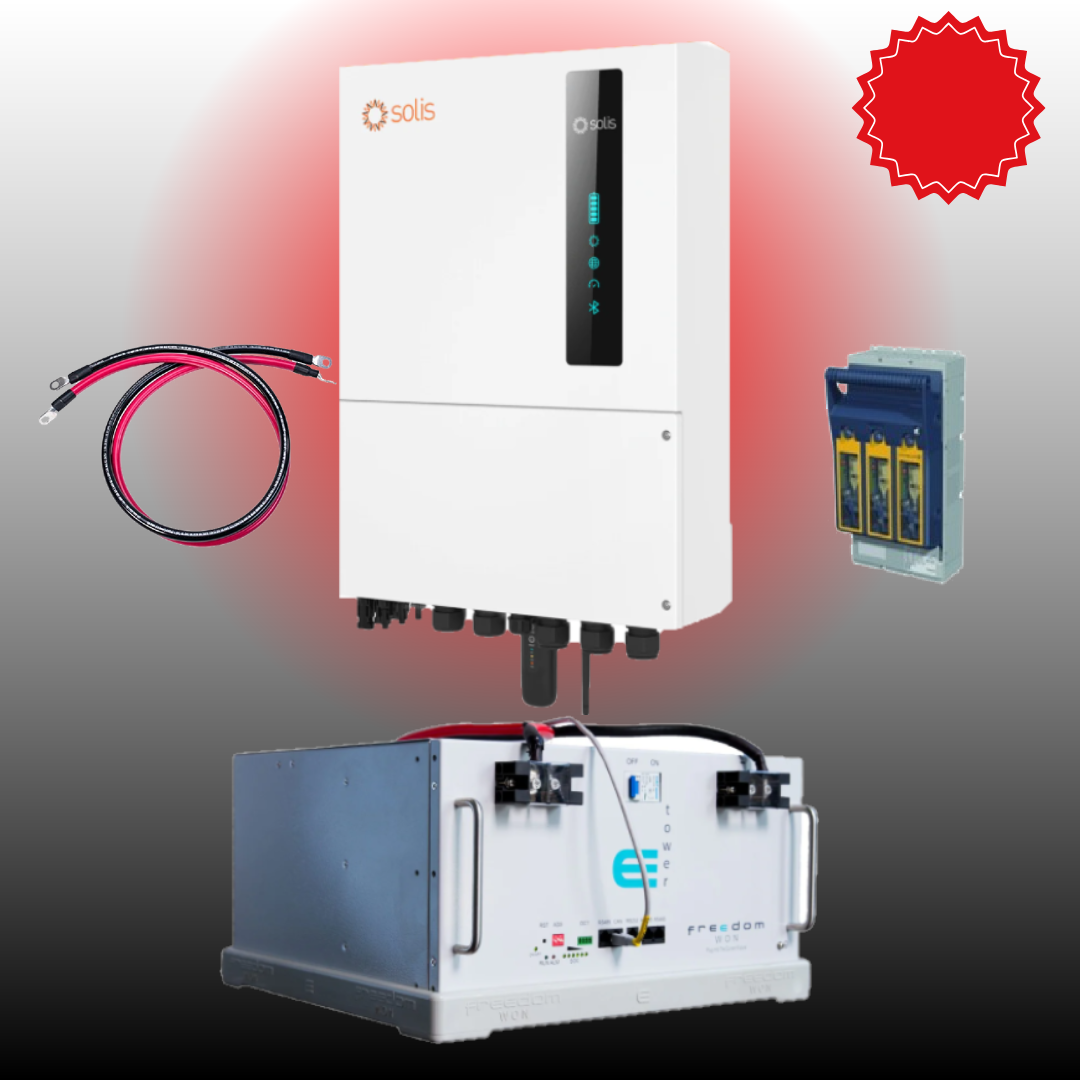

The LUX6.0 package includes:
- 1 x Solis S6 Pro 5kW Advanced Hybrid Inverter
- 1 x Freedom Won eTower LiFePO4 Battery 5kW 52V
- 1 x Freedom Won Battery Cable Pack
- 1 x Battery Disconnect with 2 x 160A Blade fuses
