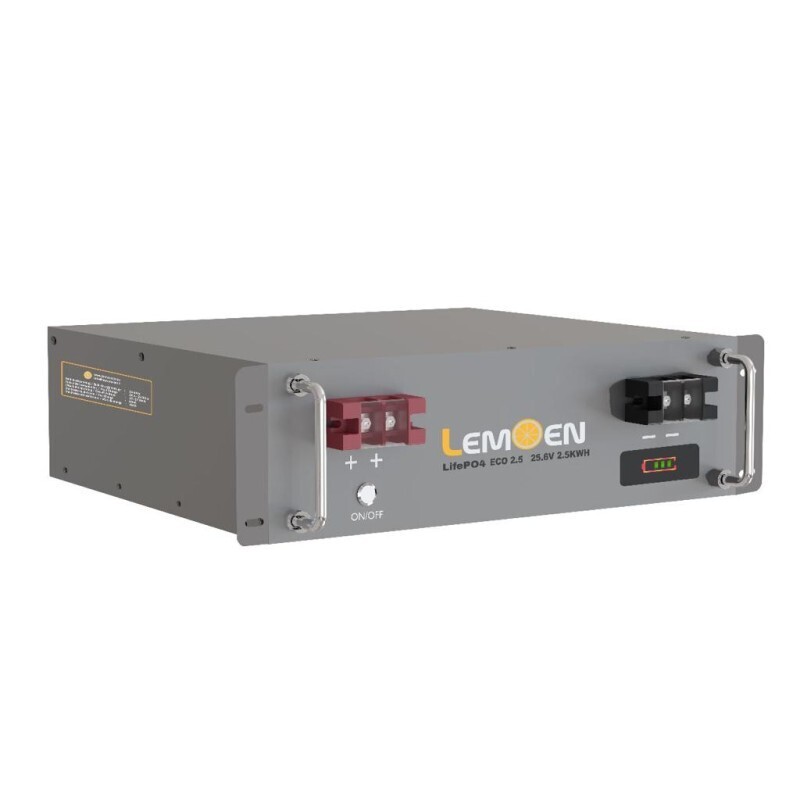

The Lemoen ECO 2.56 is the perfect entry level Li-ion battery for any small-medium residential installation. With an incredible DoD of 100% and a charge/discharge power of up to (120A) 3000W, the Lemoen Li-ion has great performance.

*Test Condition: 80% DOD, 0.2C charge & discharge @25℃

Some more features that can be expected from the Lemoen range

Advantages

• • Modular design, easy to upgrade your bank up to 6 batteries
  • 2.56kWh
  • Safe design ensure optimal safety
  • Easy to install
  • 1C charge/discharge rate (2560W)
  • CAN and RS-485 communication
  • 3000 Cycles
  • 3 Year product warranty (ECO 2.5) 3 Years For Battery Cells and BMS, whichever comes first, from the invoice date from LEMOEN, or third party which are authorized by LEMOEN

Lithium-ion batteries require compatible inverters, please check the Product Compatibility
The Lemoen 24V batteries are compatible with the Sunsynk, SRNE, Victron, Growatt, Deye, Sorotec, Voltronic, Luxpower, Must, EPever.

Technical Specifications
Nominal

• Nominal Voltage: 25.6V.
• Nominal Capacity (Wh): 2560.
• Usable Capacity (Wh): 2560.

Physical

• Dimension (mm): 483*420*133.
• Weight(Kg):27.

Electrical

• Discharge Voltage(V): 27.5 - 22.0
• Cut Off Voltage(V): 22
• Charge Voltage(V): 28.5
• Charge/Discharge Current (A): 50A (Recommended); 100A (Max); 120A (Peak@15s).

Others

• Communication Port: RS232; RS485; CAN.
• Working Temperature/°C: 0~50.
• Single string quantity(pcs): 6.
• Shelf Temperature/°C: -20~60.
• Authentication Level: TÜV/CE/UN38.3.
• Design life: 6-10+ Years@25°C. Depends on DOD per day at 0.2C
• Cycle Life: >3000, @100%DOD, 25°C
• Cycle Life: >6000, @60%DOD, 25°C
