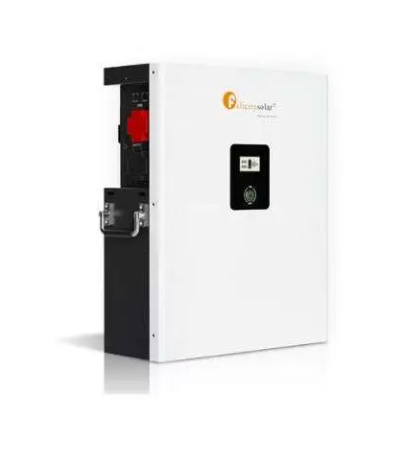

The Felicity 48V 5.12kWh Lithium Battery Pack (Model: LPBA48100-OL) is engineered to provide efficient and reliable energy storage for off-grid and hybrid solar systems.Utilizing Lithium Iron Phosphate (LiFePO₄) technology, this battery offers a high cycle life, safety, and thermal stability.
Key Specifications:
Nominal Voltage:51.2V
Voltage Range:48V – 57.6V
Usable Capacity:5.12kWh
Maximum Output Power:5.0kW
Recommended Output Power:2.5kW
Depth of Discharge (DoD): 95%
Cycle Life:
6,000 cycles at 80% DoD (25°C)
Communication Protocols:CAN & RS485
Ingress Protection Rating: IP65
Operating Temperature Range:Charge: 0°C to +55°C; Discharge: -20°C to +65°C
Dimensions (W x D x H):665mm x 440mm x 185mm
Weight:48.5kg
Features:
Scalability:Supports up to 12 units in parallel, allowing for expansion as energy needs grow.
Safety:Equipped with a built-in Battery Management System (BMS) to protect against overcharging, over-discharging, and short circuits.
Installation Flexibility:Designed for both floor and wall mounting, providing versatility in installation.
Compatibility:Compatible with various inverter brands, including Felicity Solar, Deye, Luxpower, Growatt, Victron, and more.
This battery pack is ideal for users seeking a reliable and scalable energy storage solution that integrates seamlessly with their solar power systems.
