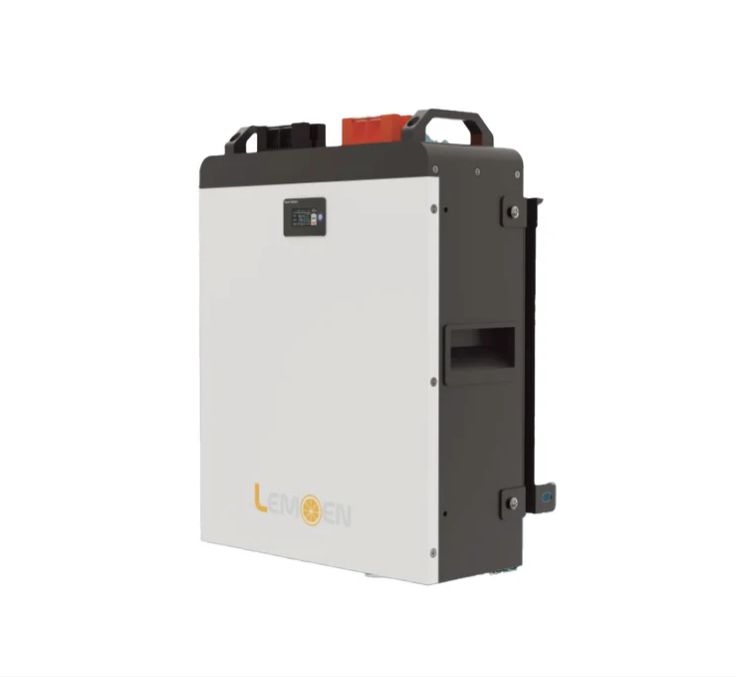

Lemoen Lithium Ion Battery BOX39S 2.56KWH 25.6V 100Ah 1C (Wall Mount / Stackable) (LemoenBOX39S)

The Lemoen BOX39S is a compact and highly efficient residential energy storage battery designed to meet the evolving energy demands of modern homes. With a nominal energy capacity of 2.56kWh and advanced Lithium Iron Phosphate (LFP) cell technology, it offers reliable backup power and seamless integration with solar inverters. The system supports both wall-mounted and stackable rack installations, providing flexible deployment options for homeowners and installers. An integrated Battery Management System (BMS) ensures safety and compatibility with multiple leading inverter brands, while the built-in LCD screen enables real-time monitoring and control.

Product Features:

• Compatible with various inverter brands via integrated BMS
• Flexible installation options: wall-mounted or stackable rack
• High safety and performance using LFP battery cells
• Integrated LCD display for real-time system status
• Optional Bluetooth functionality for enhanced connectivity
• Supports 2 series and 2 parallel connections
• Over 6000 cycles at 80% Depth of Discharge (DOD)
• Certifications: CE, MSDS, UN38.3, IEC 62619, UL1973

Specifications:

• Product Model: ES-BOX39S
• Nominal Energy: 2.56kWh
• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Cell Type: LFP (Lithium Iron Phosphate)
• Standard Charge Voltage: 28V
• Discharge Cut-off Voltage: 22.4V
• Max. Discharge Current: 100A
• Series & Parallel Function: Supports 2S2P configuration
• Display: Integrated LCD screen
• Cycle Life: ≥6000 cycles (25°C±2°C, 0.2C/0.2C, 80%DOD)
• Charge Temperature Range: 0–65°C
• Discharge Temperature Range: -20–65°C
• Installation Method: Wall-mounted or stackable rack
• Dimensions: 340 × 420 × 140 mm
• Weight: 27 kg
• Optional Function: Bluetooth
• Warranty: 3 years (under warranty terms)
